Virtual Logic Analyser

Logic Recording

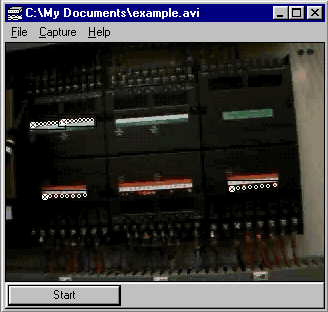

Trace points A video window will show the camera preview or the first frame of the video file. Create arrays of sense points and drag them to the LEDs on this viewfinder window. Name the points and select which ones are to record. When recording is finished the captured logic trace is displayed.

Sense points are created in up to 8 rows of up to 8 points each. Each row can be stretched and rotated to fit the source image.

The sense point layout can be saved to a file and reused for other recordings. One layout can be used with several video files recorded with the same camera position, or a predefined a set of channel names can be stored to be aligned on each recording.
